Private AI Knowledge Base: A Practical RAG Implementation Guide

A useful private knowledge system does more than place a chat box over a folder. It must retrieve the right approved material, preserve access rules, show sources, and fail safely when the answer is missing.

This guide describes a practical starting architecture. It is not a claim about a client deployment.

Start With the Workflow

Name the people who will use the system, the questions they repeatedly ask, and the decision that follows each answer. A narrow first scope such as one operations team and one maintained source set is easier to evaluate than an attempt to index the whole company.

Document four things before choosing software:

• The source owner and update process
• Representative questions and expected answers
• User groups and permission boundaries
• The action a user takes after receiving an answer

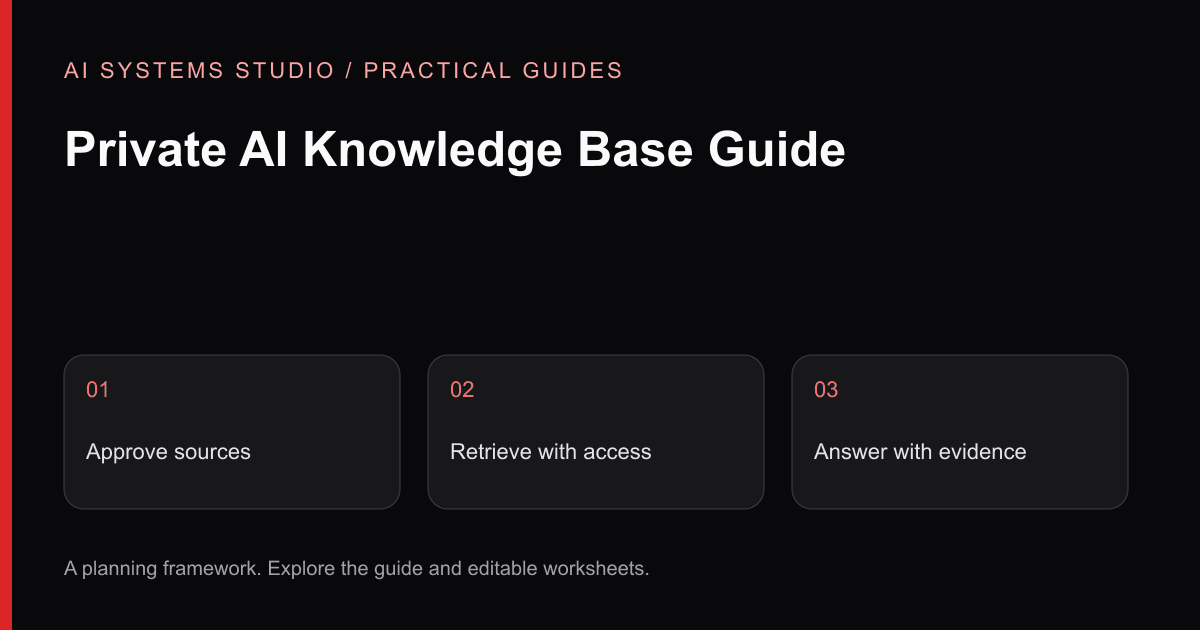

The Core Architecture

Ingestion

Read content from approved locations, extract text, remove repeated boilerplate, and retain metadata such as source, owner, version, page, and permission group.

Retrieval

Split content by meaningful section boundaries. Create embeddings, retrieve candidate passages, then consider reranking when initial search quality is insufficient. Metadata filtering should be enforced before generation, not left to the prompt.

Answer generation

Ask the model to answer only from the supplied passages, cite those passages, and say when the evidence is insufficient. A confident answer without traceable support is a product defect.

Evaluation

Build a set of real questions that includes normal, ambiguous, adversarial, permission-sensitive, and unanswerable examples. Review both retrieval and the final answer; a polished response can still be grounded in the wrong source.

Security and Privacy Questions

Before implementation, decide:

1. 1Which documents may be processed by each provider?
2. 2Where files, extracted text, embeddings, logs, and backups live
3. 3Which identity system controls access
4. 4Whether the model provider retains submitted data under the selected plan
5. 5How deletion, revocation, and incident response work
6. 6Which actions require human approval

Privacy cannot be inferred from the word “private.” It depends on the selected architecture, contracts, settings, and operating controls.

A Sensible Pilot

A focused pilot can include one or two source systems, citation-aware answers, a small permission model, an evaluation set, basic usage and failure telemetry, and documented ownership. The schedule depends on source quality, authentication, integrations, and review availability.

Common Failure Modes

• Outdated or contradictory source material
• Arbitrary chunking that separates headings from their meaning
• Permissions applied only in the interface
• No examples of questions the system should refuse
• Evaluation based on a few hand-picked demos
• No owner for reviewing failed answers after launch

Readiness Checklist

You are ready to assess a RAG pilot when you have a named workflow owner, representative source documents, example questions, known user groups, and a reviewer who can judge answer quality.

Review the RAG service or score the workflow first.

Example: An Operations Policy Assistant

Suppose a fictional team wants answers from its approved handoff guide and escalation policy. Start with those two sources, their owners, versions, and reader groups. Do not begin by indexing every shared folder. Each answer should identify the supporting source and make missing evidence visible.

For a question about an escalation deadline, the retrieval layer must find the current relevant passage. If the passage is absent, the system should say it cannot establish the deadline from the approved sources. If two current documents conflict, route the conflict to the source owner rather than combining them into an invented policy.

Plan for Updates and Deletion

Give every source a stable identifier and version. Decide how edits reach the index, how failed ingestion is noticed, and how removed documents and derived content are deleted. Test revocation with a user who previously had access; stale caches must not continue disclosing removed material. Keep the source owner responsible for factual policy changes and the system owner responsible for ingestion and retrieval behavior.

Before a pilot, write a small set of answerable, unanswerable, conflicting, and unauthorized questions. A small sample can reveal obvious defects but cannot establish broad accuracy. Extend it as actual failure modes are discovered. The RAG evaluation checklist includes a synthetic starter dataset you can adapt.

Primary Sources and Next Step

Microsoft's RAG overview explains the retrieval and generation architecture. The OWASP LLM project provides a useful threat-review starting point. The table above is our illustrative operating design, not a statement about a deployed client system.

Discuss a private knowledge pilot with one source set, a named owner, and representative questions.
